Solar heater

SAC2 - General description

Mounted on: Wall or roof

Rooms: Normally covers at least 15 m²

Maximum performance: 200 watt

Capacity fan: 70 m3/hour

Performance fan: 15 – 30 m3/hour

Size: 52.4 x 52.4 x 5.5 cm

SAC2 is typically mounted on wall - but can also be roof mounted. SV2 has the same fan and sun cell as its elder brother SAC3, but the SAC2 panel has equal length and width. Therefore this model is well suited for putting 'on point tip' on wall or roof. That is also why it has got it's nickname "Diamond". The picture shows SAC2 in white enamel. The amount of hot air from the small models, does not exceed levels for temperature and m3 that makes thermostat/regulator unit necessary. That is why SAC3 and SAC2 as standard are delivered only with on/off switch.

SAC3 - General description

Mounted on: Wall or roof

Rooms: Normally covers at least 20 m²

Maximum performance: 250 watt

Capacity fan: 70 m3/hour

Performance fan: 20 – 35 m3/hour

Size: 70.4 x 52.4 x 5.5 cm

SAC3 is mounted on wall or roof. SAC3 has the same fan and sun cell as SAC2 but is not equal in length and width. The amount of hot air from the small models, does not exceed levels for temperature and m3 that makes thermostat/regulator unit necessary. That is why SAC3

And SAC2 as standard are delivered only with on/off switch.

SAC7 - General description

Mounted on: Wall or roof

Rooms: Normally covers at least 40 m²

Maximum performance: 500 watt

Capacity fan: 170 m3/hour

Performance fan: 40 – 90 m3/hour

Size: 100.4 x 70.4 x 5.5 cm

SAC7 jointly with it's bigger brother SAC14 - 'most sold model'. Its size and dimensions makes it easy to find a horizontal or vertical placement for this panel in almost any building context. SAC7 Slimline is sold with on/off-switch or Regulator unit

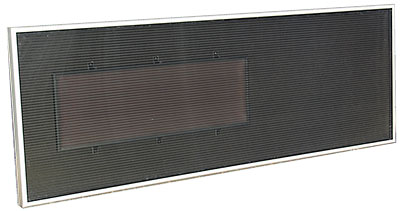

SAC14 - General description

Mounted on: Wall or roof

Rooms: Normally covers at least 70 m²

Maximum performance: 1000 watt

Capacity fan: 170 m3/hour

Performance fan: 60 – 110 m3/hour

Size: 197.4 x 70.4 x 5.5 cm

SAC14 is 'Most sold model' jointly with it's smaller brother SAC7. Even though SAC14 delivers approx. 60 - 110 m3 air pr. hour with approx. 25-30 degrees C. temperature rise - compared to air temperature outdoors - the model is still so small, that it typically can be mounted both horizontally or vertically.
